LED Tail Light Kit, 1952-1964, Willys Station Wagon

LED Tail Light Kit, 1952-1964, Willys Station Wagon

Part #: 119500
$195.99
$195.99 USD
Sale Call for details
Shipping calculated at checkout.

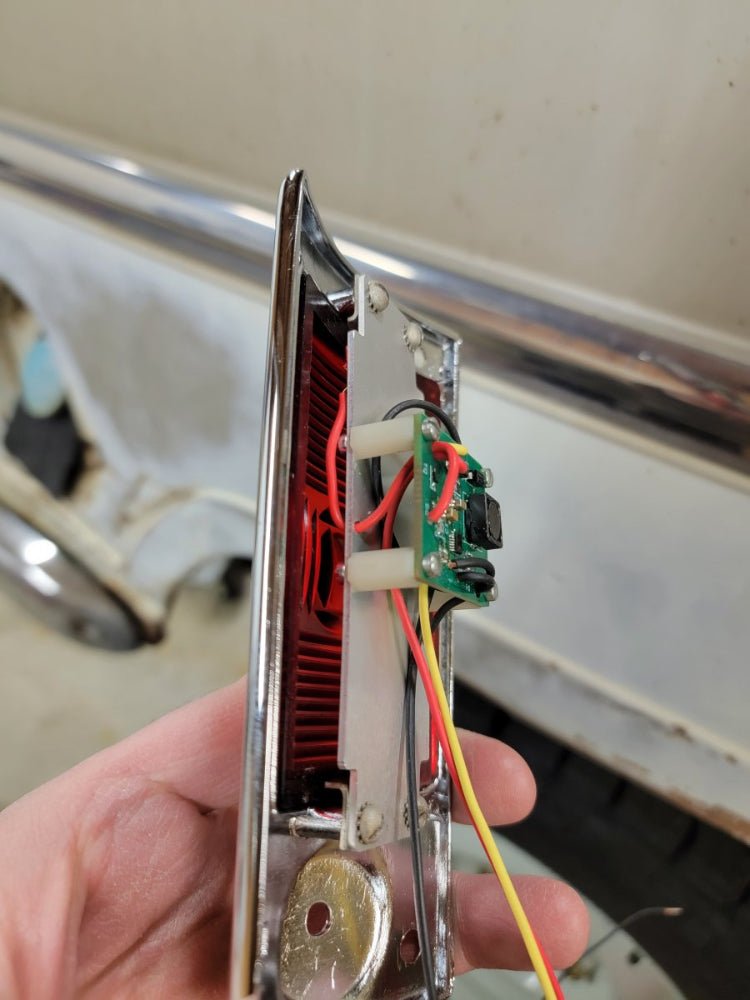

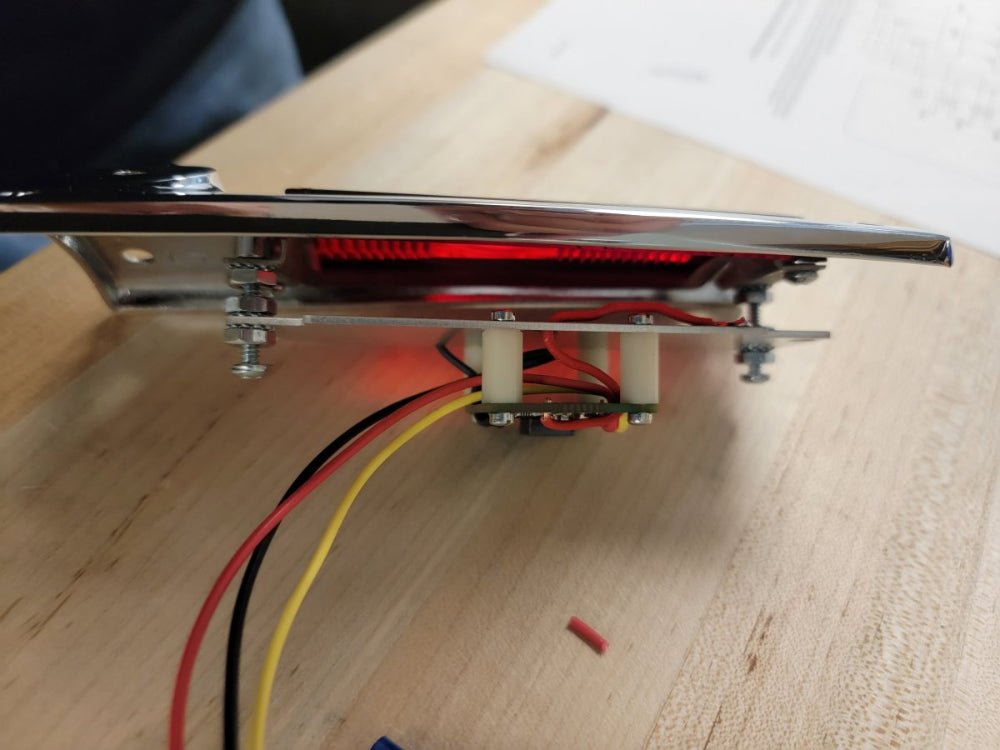

LED Tail & Stop Light Conversion Assembly (Pair) and proudly made in the USA. Upgrade your classic vehicle with this LED Tail and Stop Light Conversion Kit. Designed to replace the standard taillight base, this assembly delivers a modern, solid-state LED solution operating at 12 volts.

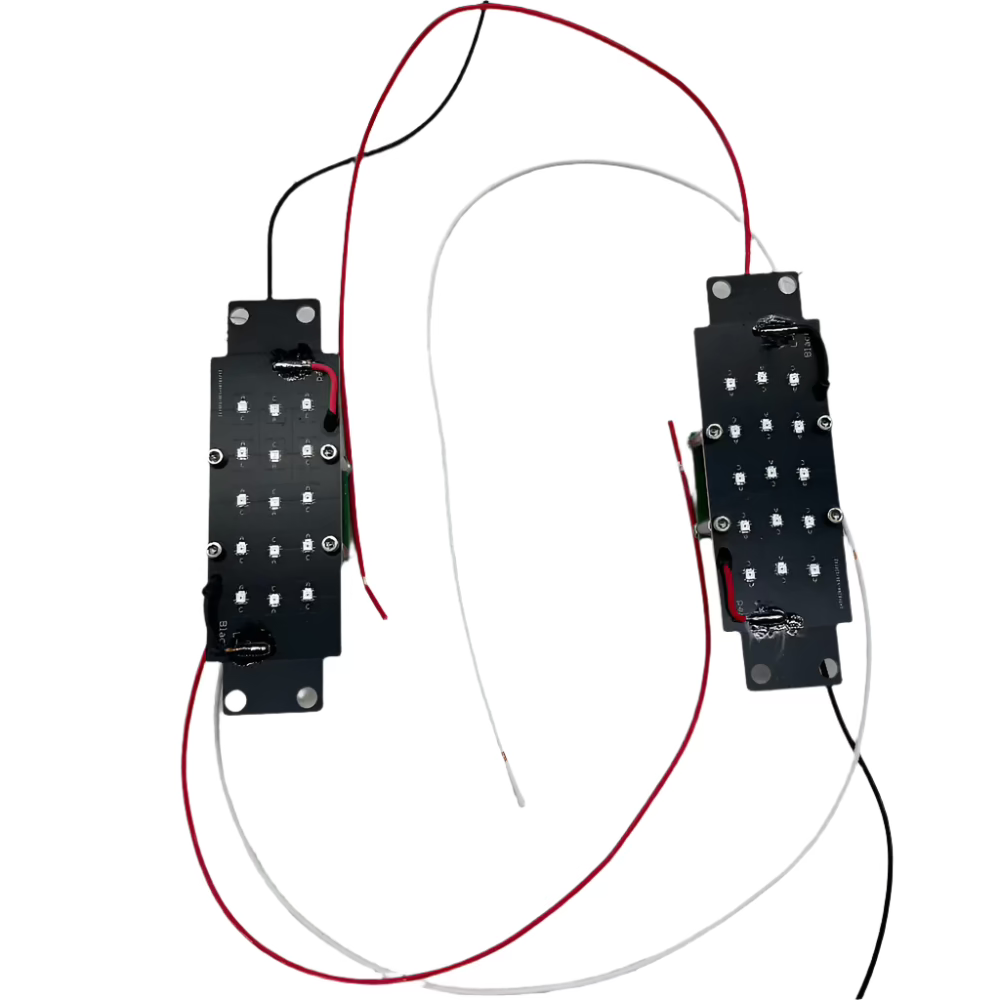

Each unit replaces the original bulb and mounting bracket with a durable aluminum PCB featuring 15 high-efficiency LEDs—providing brightness comparable to modern vehicles and significantly improving safety on the road.

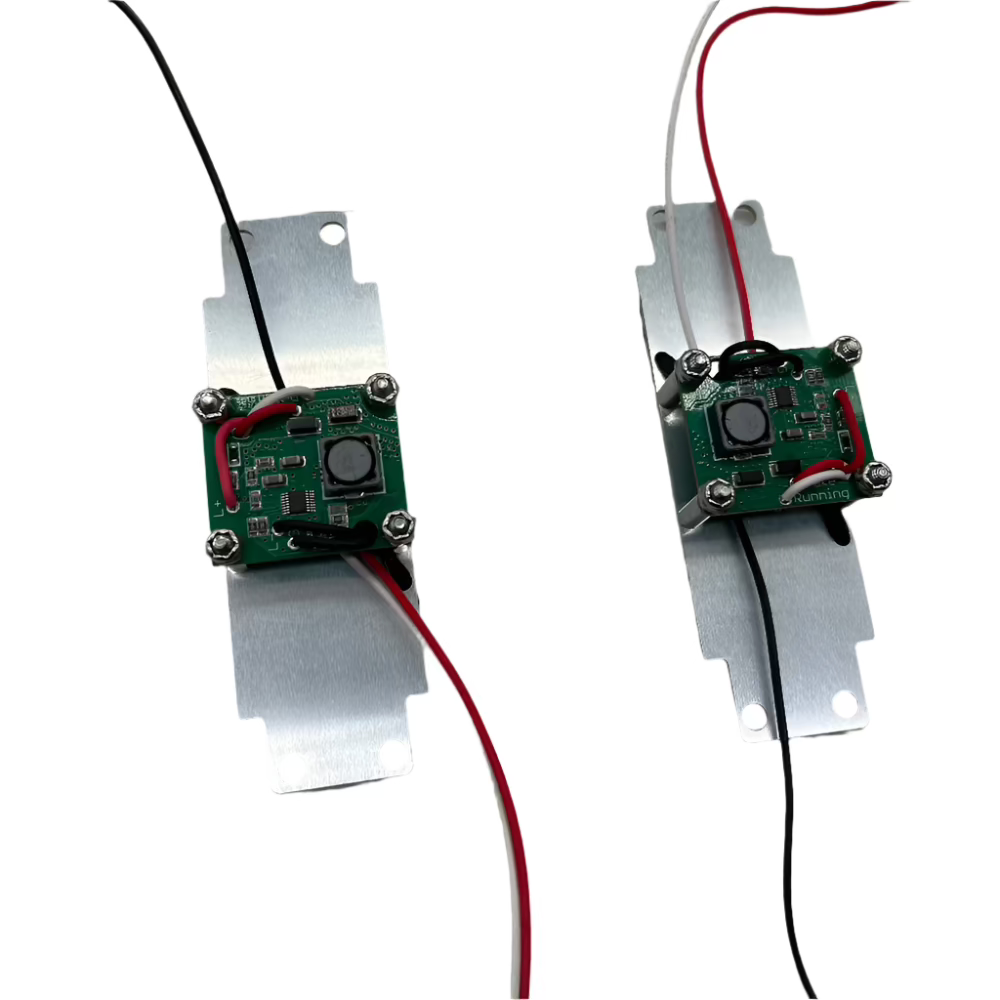

The 15 LEDs are wired in series and powered by a current-limiting switching power supply, delivering approximately 32–34 volts when the brake lights are engaged. They maintain consistent brightness down to about 7 volts, below which they automatically shut off.

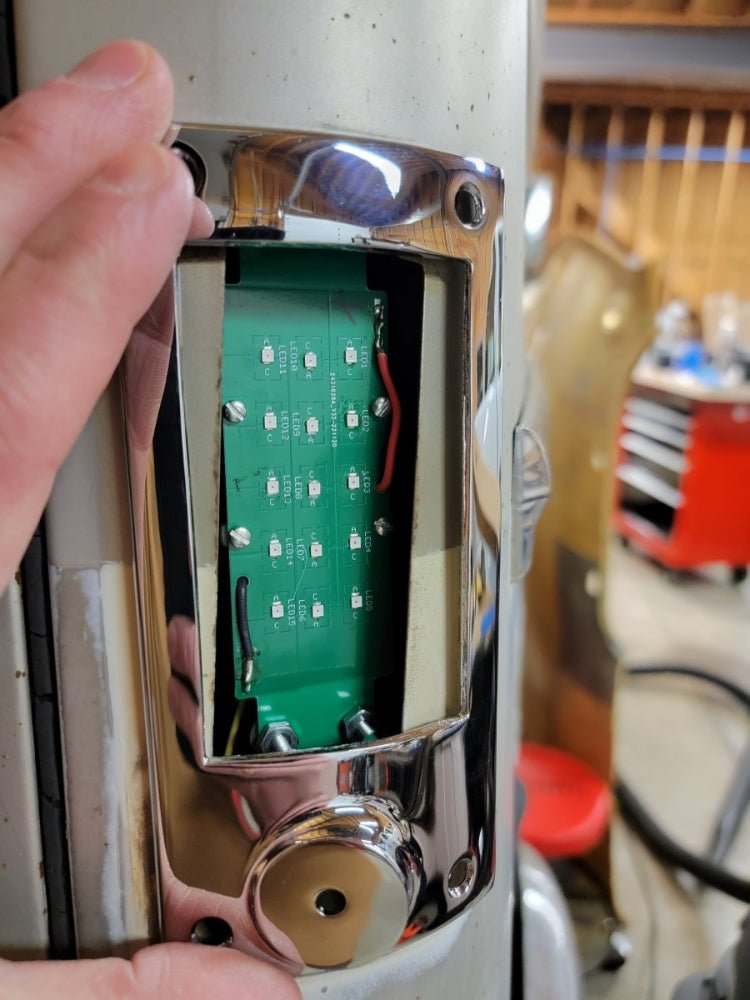

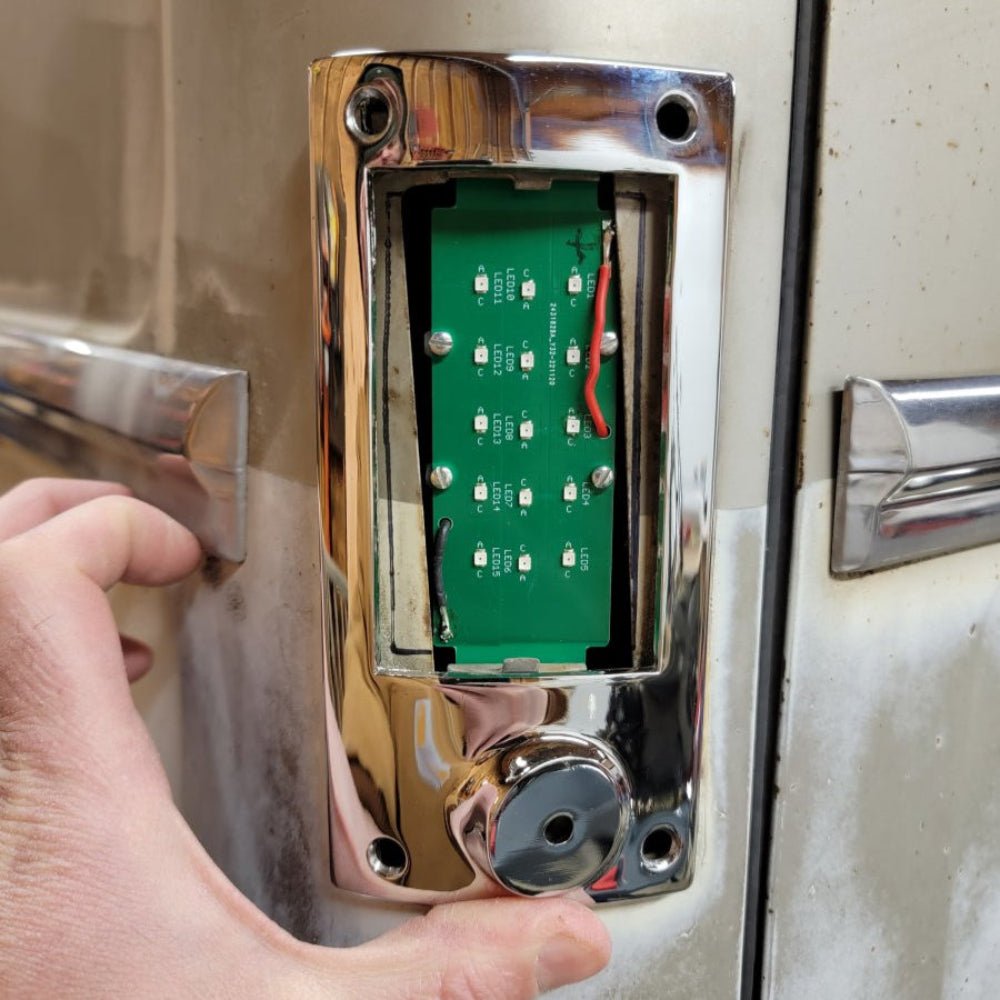

This assembly fits directly into your original tail light housings (part number 11957K) for a seamless installation.

Wiring Instructions:

  • Red: Power
  • Black: Turn Signals
  • White: Ground

Compatible With:

  • 1952–1964 Willys Station Wagon models

Important Note:
Use an LED-specific turn signal flasher (part number 938000). These LEDs draw less than half the current of standard bulbs—especially the running lights—so a compatible flasher is essential for proper function.

https://youtu.be/42chERkb424?si=C3s_ZLTLmW2_qV5s
