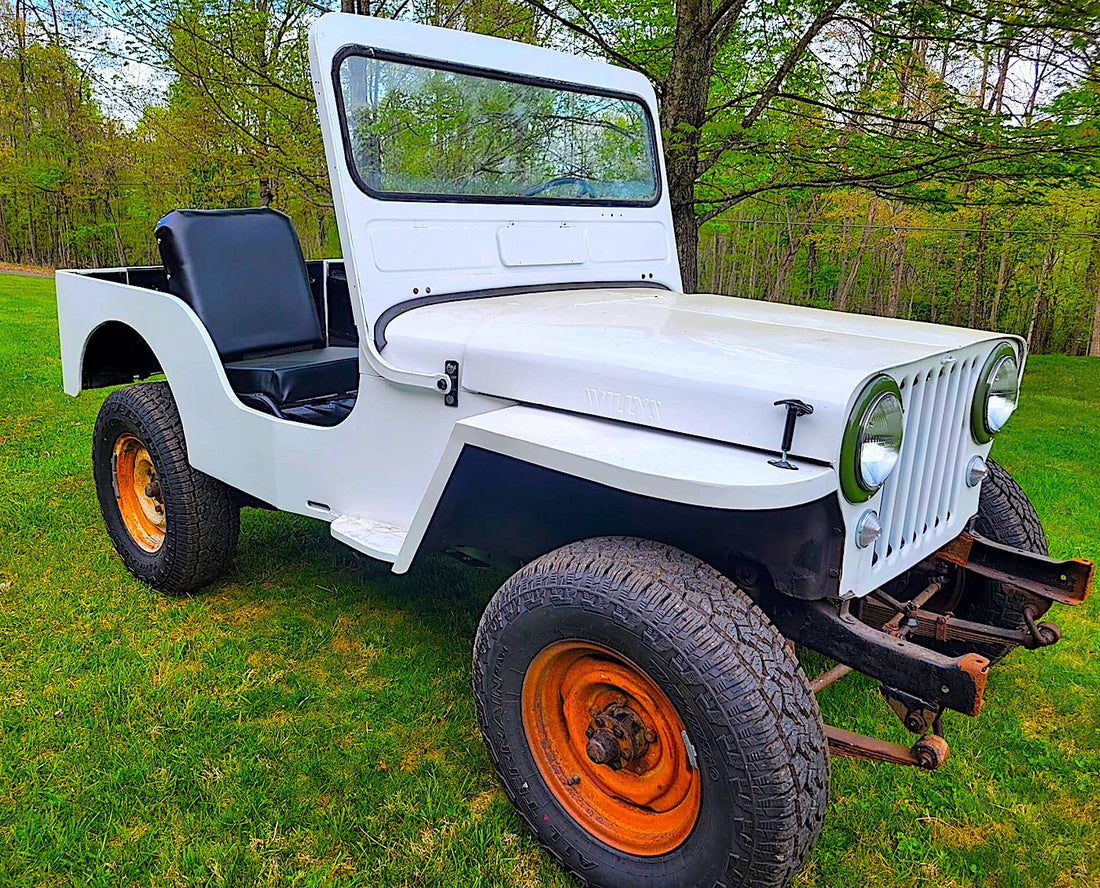

CJ3A: Control Systems

Mastering Control: Navigating the CJ-3A's Steering, Brakes, Wheels, Tires, Inner Tube, and Suspension

Click on any link below to shop now for Willys CJ-3A Jeep parts:

Embark on a journey through the intricate control systems of the CJ-3A, where manual prowess and vintage engineering converge to create an unparalleled driving experience.

Steering Specifications:

  • Type of Steering System: The CJ-3A employs a manual recirculating ball steering system, ensuring a direct and hands-on connection between the driver and the vehicle's navigation.
  • Gear Box Type: The Ross TL Worm and sector steering box guide the way, providing precise control over the direction.
  • Horn: The classic charm extends to a simple yet effective horn, typically a button nestled conveniently on the steering wheel.

Brake Specifications:

  • Brake Type: The CJ-3A boasts hydraulic drum brakes, an advanced feature for its time, offering reliable stopping power.
  • Brake Drum and Shoe Size: Equipped with 9-inch hydraulic drum brakes on both front and rear, with brake shoe width at 1.75 inches.
  • Wheel Cylinder and Master Cylinder: A 1-inch diameter wheel cylinder complements the single reservoir master cylinder, ensuring hydraulic efficiency.
  • Emergency Brake: Hand-operated mechanical emergency brake adds an extra layer of safety.
  • Brake Fluid: Hydraulics rely on DOT 3 or DOT 4 hydraulic brake fluid, maintaining optimal performance.

Wheels, Tires & Inner Tube Specifications: The Foundation of Mobility

  • Wheel Size and Bolt Pattern: Riding on 16-inch wheels with a 5 x 5.5 inches bolt pattern.
  • Lug Nut Orientation: Conical seat lug nuts with a right-hand (clockwise) thread secure the wheels with precision.
  • Tire Size and Type: Outfitted with 6.00 x 16 bias-ply tires
  • Tire Pressure and Ply Rating: Maintaining a recommended tire pressure of 28-32 PSI and boasting a 6-ply rating for durability.
  • Inner Tube Features: The inner tubes, designed for 6.00 x 16 tires, feature a straight rubber valve stem (TR15) and can be patched for minor punctures using appropriate kits.

Suspension Specifications:

Front Leaf Spring Configuration:

  • Number and Type: The front suspension relies on two semi-elliptical leaf springs, each comprised of seven individual leaves.
  • Mounting: These leaf springs are securely mounted on either side of the front axle, utilizing appropriate shackles and hardware for a robust front suspension.

Rear Leaf Spring Configuration:

  • Number and Type: Similar to the front, the rear suspension boasts two semi-elliptical leaf springs, each featuring seven individual leaves.
  • Mounting: The rear leaf springs are mounted on both sides of the rear axle, providing a stable and flexible foundation for the rear suspension.

In the realm of vintage Jeep engineering, every element plays a crucial role. Stay tuned as we delve deeper into the mechanical symphony of the CJ-3A, exploring the transmission, transfer case, and differential intricacies in our next segment. JeepsterMan – your compass in the journey of authenticity and excellence.
